189394

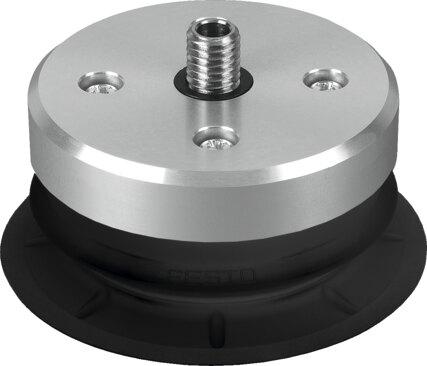

Name: Festo 189394 Vacuum suction cup ESS-80-BN
Brand: Festo

Vacuum suction cup ESS-80-BN

The Festo part number 189394 is a round 1.5-fold protective bellows industrial component featuring an 80 mm suction cup diameter, a 10 mm height compensation, and a nominal width of 6 mm with a 63.9 cm³ suction cup volume. Operating within a pressure range of -95 kPa to 0 kPa using atmospheric air based on ISO 8573-1:2010 [7:-:-], this component mounts via the vacuum connection in any position and delivers a holding force of 213.6 N alongside a lateral force of 199.5 N at the nominal operating pressure of -70 kPa. Built with a product weight of 139 g, a corrosion resistance class of 1, and VDMA24364-A1-L LABS conformity, it functions within an ambient temperature range of -10 °C to 70 °C and a minimum workpiece radius of 430 mm. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 189394
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 189394.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Suction cup height compensation: 10 mm
Min. workpiece radius: 430 mm
Nominal width: 6 mm
Suction cup diameter: 80 mm
Suction cup volume: 63.9 cm³
Connection position: up
Mounting position: Any
Classication of suction cup holder: Size 5
Suction cup shape: round protective bellows 1.5-fold
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -70 kPa | -0.7 bar | -10.15 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-A1-L
For use in the food industry: See supplementary material information
Ambient temperature: -10 °C...70 °C
Holding force at nominal operating pressure: 213.6 N
Lateral force at nominal operating pressure: 199.5 N
Product weight: 139 g
Type of mounting: Via vacuum connection
Vacuum connection: M10
Color: Black
Shore hardness: 50 +/-5
Material of screwed plug: POM | Steel, nickel-plated
