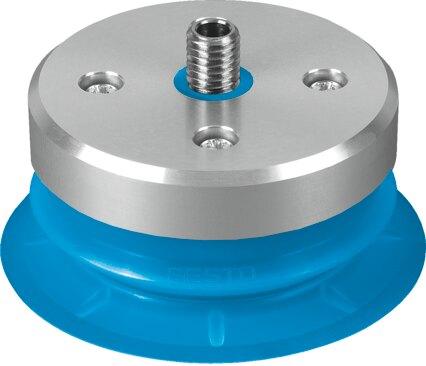

Name: Festo 189395 Vacuum suction cup ESS-80-BU
Brand: Festo

Vacuum suction cup ESS-80-BU

The Festo part number 189395 is a round protective bellows 1.5-fold industrial component featuring an 80 mm suction cup diameter, a 10 mm height compensation, and a nominal width of 6 mm with a suction cup volume of 63.9 cm³. Designed with an upward connection position and mounting via vacuum connection in any position, it operates within a pressure range of -95 kPa to 0 kPa and delivers a holding force of 213.6 N alongside a lateral force of 132.5 N at the nominal operating pressure of -70 kPa. This 139 g unit functions in ambient temperatures from -20 °C to 60 °C, exhibits a corrosion resistance class of 1, and conforms to VDMA24364 Zone III LABS requirements while supporting a minimum workpiece radius of 430 mm using atmospheric air based on ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 189395
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 189395.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Suction cup height compensation: 10 mm
Min. workpiece radius: 430 mm
Nominal width: 6 mm
Suction cup diameter: 80 mm
Suction cup volume: 63.9 cm³
Connection position: up
Mounting position: Any
Classication of suction cup holder: Size 5
Suction cup shape: round protective bellows 1.5-fold
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -70 kPa | -0.7 bar | -10.15 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
For use in the food industry: See supplementary material information
Ambient temperature: -20 °C...60 °C
Holding force at nominal operating pressure: 213.6 N
Lateral force at nominal operating pressure: 132.5 N
Product weight: 139 g
Type of mounting: Via vacuum connection
Vacuum connection: M10
Color: Blue
Shore hardness: 60 +/-5
Material of screwed plug: POM | Steel, nickel-plated

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 189395. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
