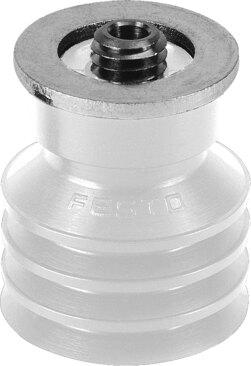

Name: Festo 189401 Vacuum suction cup ESS-20-CS
Brand: Festo

Vacuum suction cup ESS-20-CS

The Festo 189401 is a round protective bellows 3.5-fold industrial component featuring a 20 mm suction cup diameter, a 7 mm height compensation, and a nominal width of 3 mm with a 2.75 cm³ suction cup volume. It operates within a pressure range of -95 kPa to 0 kPa and an ambient temperature range of -30 °C to 180 °C, delivering a holding force of 8.2 N and a lateral force of 7 N at a nominal operating pressure of -70 kPa. Designed with an upward connection position, mountable in any position via vacuum connection, and classified under corrosion resistance class 1, this 6.9 g part uses atmospheric air based on ISO 8573-1:2010 [7:-:-] and conforms to VDMA24364 Zone III LABS (PWIS) requirements. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 189401
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 189401.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Suction cup height compensation: 7 mm
Min. workpiece radius: 50 mm
Nominal width: 3 mm
Suction cup diameter: 20 mm
Suction cup volume: 2.75 cm³
Connection position: up
Mounting position: Any
Classication of suction cup holder: Size 4
Suction cup shape: round protective bellows 3.5-fold
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -70 kPa | -0.7 bar | -10.15 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
For use in the food industry: See supplementary material information
Ambient temperature: -30 °C...180 °C
Holding force at nominal operating pressure: 8.2 N
Lateral force at nominal operating pressure: 7 N
Product weight: 6.9 g
Type of mounting: Via vacuum connection
Vacuum connection: M6
Color: Transparent
Shore hardness: 50 +/-5
Material of screwed plug: Brass, nickel-plated | Steel, galvanized and chrome-plated
