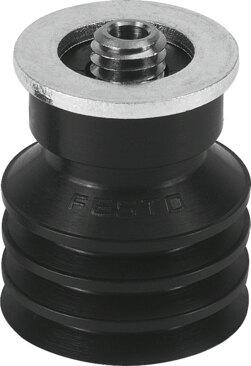

Name: Festo 189402 Vacuum suction cup ESS-30-CN
Brand: Festo

Vacuum suction cup ESS-30-CN

This Festo industrial component features a 30 mm round protective bellows 3.5-fold suction cup with a 9.47 cm³ volume, 3 mm nominal width, and 10.5 mm height compensation. Operating between -95 kPa and 0 kPa with a nominal operating pressure of -70 kPa, the 12.2 g unit delivers a holding force of 20.8 N and a lateral force of 11.5 N. The assembly utilizes an upward connection position for mounting via vacuum connection in any position across an ambient temperature range of -10 °C to 70 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 189402
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 189402.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Suction cup height compensation: 10.5 mm
Min. workpiece radius: 80 mm
Nominal width: 3 mm
Suction cup diameter: 30 mm
Suction cup volume: 9.47 cm³
Connection position: up
Mounting position: Any
Classication of suction cup holder: Size 4
Suction cup shape: round protective bellows 3.5-fold
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -70 kPa | -0.7 bar | -10.15 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-A1-L
For use in the food industry: See supplementary material information
Ambient temperature: -10 °C...70 °C
Holding force at nominal operating pressure: 20.8 N
Lateral force at nominal operating pressure: 11.5 N
Product weight: 12.2 g
Type of mounting: Via vacuum connection
Vacuum connection: M6
Color: Black
Shore hardness: 50 +/-5
Material of screwed plug: Brass, nickel-plated | Steel, galvanized and chrome-plated
