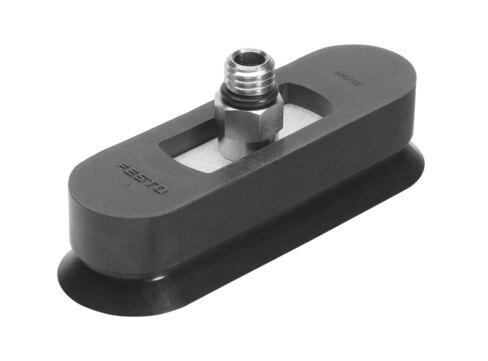

Name: Festo 189416 Vacuum suction cup ESS-20X60-ON
Brand: Festo

Vacuum suction cup ESS-20X60-ON

The Festo 189416 is an industrial component featuring an oval, flat 20x60 mm vacuum cup with a 6 mm nominal width and a suction cup volume of 3.69 cm³. It operates at a nominal operating pressure of -70 kPa (-0.7 bar, -10.15 psi) within a full operating pressure range of -95 kPa to 0 kPa, delivering a holding force of 62.8 N, a horizontal lateral force of 116 N, and a vertical lateral force of 63 N. Weighing 30.8 g with an M10 vacuum connection, this part supports any mounting position and maintains a Class 1 corrosion resistance class with VDMA24364-A1-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 189416
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 189416.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 6 mm
Vacuum cup size: 20x60 mm
Suction cup volume: 3.69 cm³
Connection position: up
Mounting position: Any
Classication of suction cup holder: Size 5
Suction cup shape: Oval, at
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -70 kPa | -0.7 bar | -10.15 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-A1-L
For use in the food industry: See supplementary material information
Ambient temperature: -10 °C...70 °C
Holding force at nominal operating pressure: 62.8 N
Horizontal lateral force at nominal operating pressure: 116 N
Vertical lateral force at nominal operating pressure: 63 N
Product weight: 30.8 g
Type of mounting: Via vacuum connection
Vacuum connection: M10
Color: Black
Shore hardness: 50 +/-5
Note on materials: RoHS compliant
Suction cup material: NBR
