189417

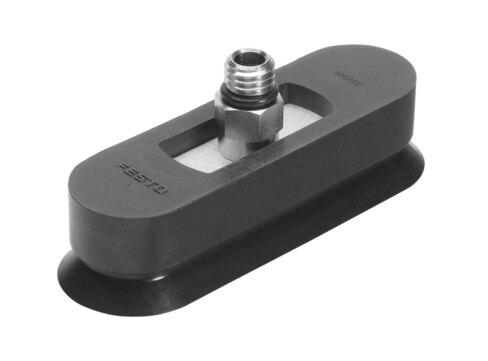

Name: Festo 189417 Vacuum suction cup ESS-25X75-ON
Brand: Festo

Vacuum suction cup ESS-25X75-ON

The Festo part number 189417 is an industrial component featuring an oval, flat 25x75 mm vacuum cup with a nominal width of 6 mm and a suction cup volume of 6.7 cm³. Operating within a pressure range of -95 kPa to 0 kPa and a nominal operating pressure of -70 kPa, this component delivers a holding force of 92.5 N, a horizontal lateral force of 125.5 N, and a vertical lateral force of 115 N. Weighing 46.8 g with a CRC rating of 1 and an M10 vacuum connection, it supports any mounting position using atmospheric air under ISO 8573-1:2010 [7:-:-] conditions across ambient temperatures from -10 °C to 70 °C. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 189417
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 189417.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 6 mm
Vacuum cup size: 25x75 mm
Suction cup volume: 6.7 cm³
Connection position: up
Mounting position: Any
Classication of suction cup holder: Size 5
Suction cup shape: Oval, at
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -70 kPa | -0.7 bar | -10.15 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-A1-L
For use in the food industry: See supplementary material information
Ambient temperature: -10 °C...70 °C
Holding force at nominal operating pressure: 92.5 N
Horizontal lateral force at nominal operating pressure: 125.5 N
Vertical lateral force at nominal operating pressure: 115 N
Product weight: 46.8 g
Type of mounting: Via vacuum connection
Vacuum connection: M10
Color: Black
Shore hardness: 50 +/-5
Note on materials: RoHS compliant
Suction cup material: NBR

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 189417. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
