Festo
189418

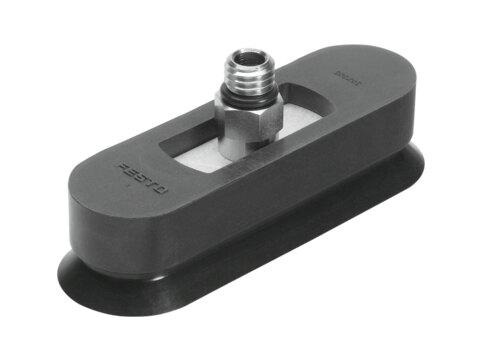

Vacuum suction cup ESS-30X90-ON
The Festo part number 189418 is an industrial component featuring an oval, flat suction cup with dimensions of 30x90 mm, a nominal width of 6 mm, and an M10 vacuum connection for mounting. It operates within a pressure range of -95 kPa to 0 kPa and delivers a holding force of 134.4 N at its nominal operating pressure of -70 kPa. Constructed with a product weight of 55.3 g, it operates in ambient temperatures from -10 °C to 70 °C with a low corrosion stress rating of CRC 1. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 189418
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 189418.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 6 mm
- Vacuum cup size
- 30x90 mm
- Suction cup volume
- 10.17 cm³
- Connection position
- up
- Mounting position
- Any
- Classication of suction cup holder
- Size 5
- Suction cup shape
- Oval, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -10 °C...70 °C
- Holding force at nominal operating pressure
- 134.4 N
- Horizontal lateral force at nominal operating pressure
- 201 N
- Vertical lateral force at nominal operating pressure
- 134.5 N
- Product weight
- 55.3 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- M10
- Color
- Black
- Shore hardness
- 50 +/-5
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 189418. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
