18960

Name: Festo 18960 Addressing cable KASI-ADR
Brand: Festo

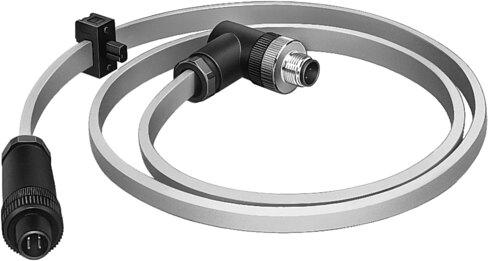

Addressing cable KASI-ADR

The Festo 18960 is an AS-Interface T-distributor with cables at both ends in a 2 to 1 distributor type configuration, featuring the ability to connect a programming device to an AS-Interface component via an AS-i flat cable without a label holder. Electrical connection 1 functions on the field device side with an angled, square socket design utilizing 2-pin/wire AS-Interface connection technology with 2 occupied pins mounted via insertion. Electrical connection 2 also serves the field device side with a straight, round socket design utilizing 4-pin M12x1 A-coded connection technology as per EN 61076-2-101 with 2 occupied pins. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 18960
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 18960.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Protocol: AS-Interface
Structural design: T-distributor with cables at both ends
Distributor type: 2 to 1
Additional functions: Connecting the programming device to an AS-Interface component via | AS-i at cable.
Cable designation: Without label holder
Electrical connection 1, function: Field device side
Electrical connection 1, design: Square
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled
Electrical connection 1, connection technology: AS-Interface
Electrical connection 1, number of pins/wires: 2
Electrical connection 1, occupied pins/wires: 2
Electrical connection 1, type of mounting: Inserted
Electrical connection 2, function: Field device side
Electrical connection 2, design: Round
Electrical connection 2, connection type: Socket
Electrical connection 2, cable outlet: Straight
Electrical connection 2, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 2, number of pins/wires: 4
Electrical connection 2, occupied pins/wires: 2
Electrical connection 2, type of mounting: Inserted
Electrical connection 3, function: Control side
Electrical connection 3, design: Round
Electrical connection 3, connection type: Plug
Electrical connection 3, cable outlet: Angled
Electrical connection 3, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 3, number of pins/wires: 4
Electrical connection 3, occupied pins/wires: 2
Electrical connection 3, type of mounting: Inserted
DC operating voltage range: 0 V...48 V
Operating voltage range AC: 0 V...48 V

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 18960. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
