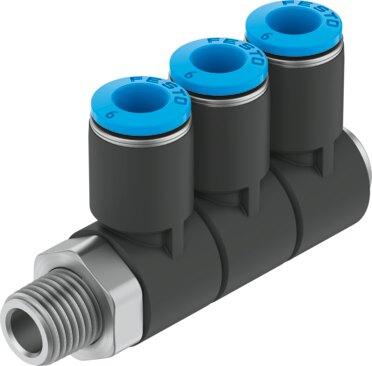

Reference imageConfirm configuration by manufacturer part number.
Festo
190783
Multiple distributor QSLV3-1/4-3/8-U
The Festo part number 190783 is a standard industrial component featuring a structural design based on the push-pull principle with one supply line and three outlets. This component accommodates pneumatic connection 1 via an external thread 1/4 NPT and pneumatic connection 2 for a pneumatic tubing outside diameter of 3/8", operating within a pressure range of -0.095 MPa to 1 MPa. Rated with a corrosion resistance class of 1 and a maximum tightening torque of 14 Nm, it supports an ambient temperature range of -10 °C to 60 °C and weighs 100 g. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 190783
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 190783.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 5.3 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Structural design
- Push-pull principle
- Pack size
- 1
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque
- 14 Nm
- Product weight
- 100 g
- No. of outlets
- 3
- No. of supply lines
- 1
- Pneumatic connection 1
- external thread 1/4 NPT
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3/8"
- Ambient temperature Fahrenheit
- 14 °F...140 °F
- Releasing ring color
- Gray
- Material of screwed plug
- Brass, nickel-plated
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
