Festo
190785

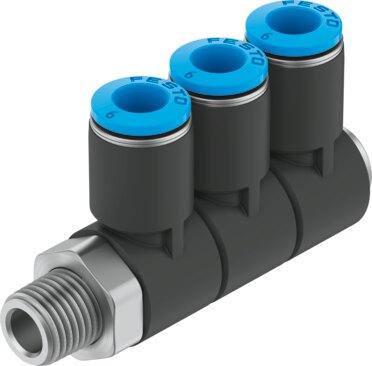

Multiple distributor QSLV3-3/8-3/8-U
The Festo part number 190785 is a standard industrial component featuring a nominal width of 5.3 mm, one supply line, and three outlets with an external thread 3/8 NPT connection and a connection for 3/8" outside diameter pneumatic tubing. Utilizing a push-pull structural design with a coated screwed plug seal, this unit operates within a pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar / -13.775 psi to 145 psi) and an ambient temperature range of -10 °C to 60 °C (14 °F to 140 °F). It is designed for compressed air media according to ISO 8573-1:2010 [7:-:-], allows lubricated operation, and features a maximum tightening torque of 24 Nm with a product weight of 103 g. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 190785
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 190785.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 5.3 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Structural design
- Push-pull principle
- Pack size
- 1
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque
- 24 Nm
- Product weight
- 103 g
- No. of outlets
- 3
- No. of supply lines
- 1
- Pneumatic connection 1
- external thread 3/8 NPT
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3/8"
- Ambient temperature Fahrenheit
- 14 °F...140 °F
- Releasing ring color
- Gray
- Material of screwed plug
- Brass, nickel-plated
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 190785. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
