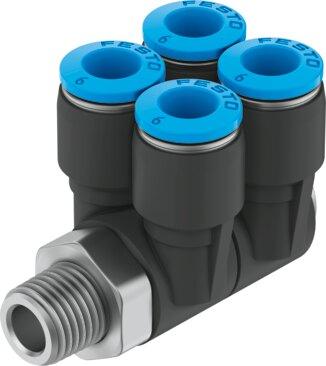

Reference imageConfirm configuration by manufacturer part number.
Festo
190797
Multiple distributor QSLV4-3/8-3/8-U
The Festo 190797 is an industrial component featuring a nominal width of 5.2 mm, one 3/8 NPT external thread supply line, and four outlets for 3/8" outside diameter pneumatic tubing utilizing a push-pull structural design. It operates within a pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar or -13.775 psi to 145 psi) and an ambient temperature span of -10 °C to 60 °C (14 °F to 140 °F) using compressed air according to ISO 8573-1:2010 [7:-:-]. This standard-size unit incorporates a coated screwed plug seal, a maximum tightening torque of 24 Nm, and a product weight of 99 g while supporting lubricated operation across any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 190797
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 190797.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 5.2 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Structural design
- Push-pull principle
- Pack size
- 1
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque
- 24 Nm
- Product weight
- 99 g
- No. of outlets
- 4
- No. of supply lines
- 1
- Pneumatic connection 1
- external thread 3/8 NPT
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3/8"
- Ambient temperature Fahrenheit
- 14 °F...140 °F
- Releasing ring color
- Gray
- Material of screwed plug
- Brass, nickel-plated
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 190797. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
