Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

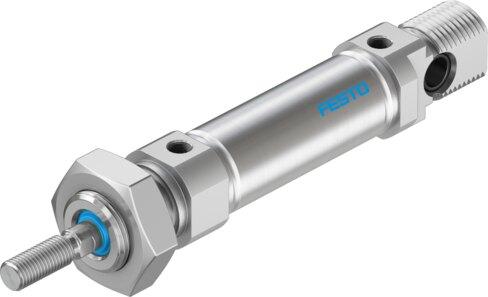

Reference imageConfirm configuration by manufacturer part number.
Festo
1908274
ISO cylinder DSNU-16-10-PPS-A
The Festo 1908274 is a double-acting industrial component featuring a 16 mm piston diameter, a 10 mm stroke, and an external M6 piston rod thread on one end. Conforming to ISO 6432 and CETOP RP 52 P standards, this unit operates with compressed air within a pressure range of 1 bar to 10 bar across an ambient temperature span of -20 °C to 80 °C. It incorporates self-adjusting pneumatic end-position cushioning with a 12 mm cushioning length, position sensing via a proximity switch, and offers moderate corrosion resistance alongside ISO Class 6 cleanroom suitability. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1908274
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1908274.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 16 mm
- Piston rod thread
- M6
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- CETOP RP 52 P | ISO 6432
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.15 J
- Cushioning length
- 12 mm
- Theoretical force at 6 bar, retracting
- 103.7 N
- Theoretical force at 6 bar, advancing
- 120.6 N
- Moving mass at 0 mm stroke
- 23 g
- Additional moving mass per 10 mm stroke
- 2 g
- Basic weight with 0 mm stroke
- 89.9 g
- Additional weight per 10 mm stroke
- 4.6 g
- Type of mounting
- With accessories
- Pneumatic connection
- M5
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1908274. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
