Festo
1908519

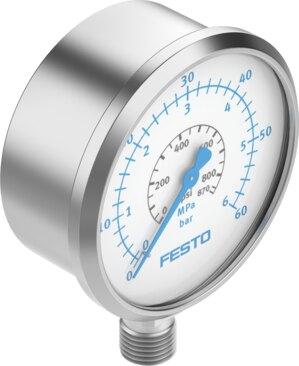

Pressure gauge PAGL-HP3-63-60-G14-RC
The Festo 1908519 is a Bourdon tube pressure gauge featuring a nominal size of 63 and a radial bottom connection with a G1/4 pneumatic port. Built for in-line installation, it delivers a display and operating pressure range of 0 bar to 60 bar, 0 MPa to 6 MPa, or 0 psi to 870 psi with an accuracy class of 1.6 and an intermittent load factor of 0.66. Constructed with brass media-contacting materials conforming to RoHS and VDMA24364-B2-L standards, this IP65-rated gauge operates with inert gases and neutral liquids within an ambient and medium temperature range of 0 °C to 60 °C. It complies with EN 837-1 and is rated for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 hazardous areas, excluding acetylene and oxygen applications. Submit part number 1908519 with your required quantity and application details to receive an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1908519
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1908519.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...60 bar | 0 MPa...6 MPa | 0 psi...870 psi
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 63
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...6 MPa | 0 bar...60 bar | 0 psi...870 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 1.6
- Degree of protection
- IP65
- Storage temperature
- -40 °C...70 °C
- Temperature of medium
- 0 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Connection position
- Radial at bottom
- Pneumatic connection
- G1/4
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1908519. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
