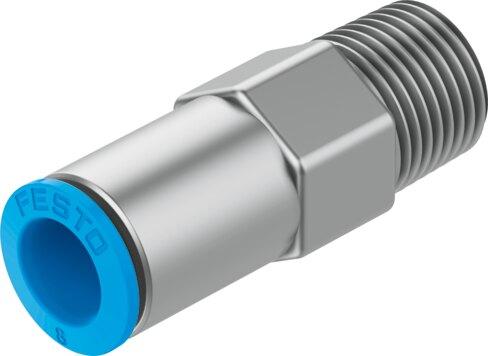

Name: Festo 190859 Non return valve HB-1/8-QSM-3/16-U
Brand: Festo

Non return valve HB-1/8-QSM-3/16-U

The Festo part number 190859 is an industrial component featuring a non-return valve function with a QS-3/16 pneumatic connection 1 and a 1/8 NPT pneumatic connection 2. Engineered for screw-in mounting, this brass housing unit operates within a pressure range of -1 bar to 10 bar and handles a normal nominal flow rate of 216 l/min using compressed air as per ISO 8573-1:2010 [7:-:-]. It requires a minimum opening differential pressure of 0.1 bar, a minimum closing differential pressure of 0.2 bar, and supports ambient temperatures from 0 °C to 60 °C with a total product weight of 13 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 190859
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 190859.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Non-return function
Pneumatic connection 1: QS-3/16
Pneumatic connection 2: 1/8 NPT
Type of mounting: Screw-in
Normal nominal ow rate (normalized to DIN 1343): 216 l/min
Operating pressure: -1 bar...10 bar
Ambient temperature: 0 °C...60 °C
Housing material: Brass
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Min. diﬀerential pressure, opening: 0.1 bar
Min. diﬀerential pressure, closing: 0.2 bar
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B2-L
Product weight: 13 g
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 190859. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
