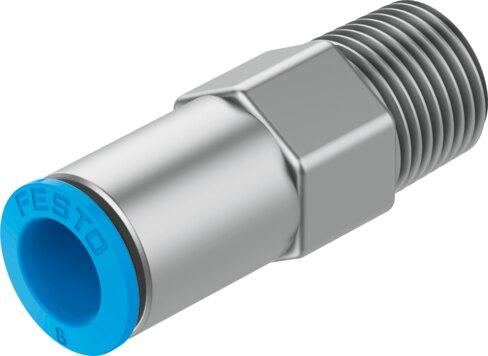

Reference imageConfirm configuration by manufacturer part number.
Festo
190864
Non return valve HB-1/4-QS-5/16-U
The Festo 190864 is a brass industrial component featuring a non-return valve function with a QS-5/16 pneumatic connection 1 and a 1/4 NPT pneumatic connection 2. Engineered for screw-in mounting, this unit delivers a normal nominal flow rate of 739 l/min across an operating pressure range of -1 bar to 10 bar, while functioning within an ambient temperature of 0 °C to 60 °C. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] and requires oil lubrication for continued use, exhibiting a minimum opening differential pressure of 0.1 bar and a minimum closing differential pressure of 0.2 bar. Weighing 24 g, the RoHS-compliant assembly conforms to VDMA24364-B1/B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 190864
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 190864.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Non-return function
- Pneumatic connection 1
- QS-5/16
- Pneumatic connection 2
- 1/4 NPT
- Type of mounting
- Screw-in
- Normal nominal ow rate (normalized to DIN 1343)
- 739 l/min
- Operating pressure
- -1 bar...10 bar
- Ambient temperature
- 0 °C...60 °C
- Housing material
- Brass
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Min. differential pressure, opening
- 0.1 bar
- Min. differential pressure, closing
- 0.2 bar
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 24 g
- Note on materials
- RoHS compliant
