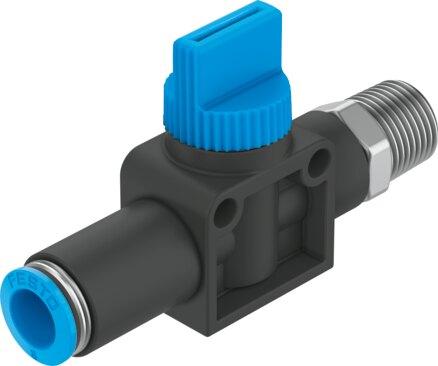

Reference imageConfirm configuration by manufacturer part number.
Festo
190871
Shut-off valve HE-3A-1/8-QS-3/16-U
The Festo part number 190871 is a 3/2-way bistable industrial component featuring manual actuation and a piston gate valve structural design with a nominal width of 2.5 mm and a normal nominal flow rate of 195.3 l/min. Built with a PBT-reinforced housing and soft sealing principle, this directly controlled unit operates at pressures ranging from -0.95 bar to 10 bar within an ambient temperature range of 0 °C to 60 °C. It includes a QS-3/16 pneumatic connection 1, a 1/8 NPT pneumatic connection 2, an unthrottlable exhaust function, and supports compressed air operating media according to ISO 8573-1:2010 [7:-:-] with optional oil lubrication. Mount this non-reversible component in any position using direct through-hole or threaded fastening methods under a moderate corrosion stress class of CRC 2. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 190871
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 190871.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, bistable
- Selection of additional function
- with exhaust function
- Pneumatic connection 1
- QS-3/16
- Pneumatic connection 2
- 1/8 NPT
- Actuation type
- Manual
- Type of mounting
- Alternatively: | Direct mounting via through-hole | Direct fastening via thread
- Normal nominal ow rate (normalized to DIN 1343)
- 195.3 l/min
- Nominal width
- 2.5 mm
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar
- Ambient temperature
- 0 °C...60 °C
- Housing material
- PBT-reinforced
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Structural design
- Piston gate valve
- Type of control
- directly
- Flow direction
- Non-reversible
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Temperature of medium
- 0 °C...60 °C
- Product weight
- 30 g
- Pneumatic connection 3
- Not ducted
- Note on materials
- RoHS compliant
- Seals material
- NBR
