Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

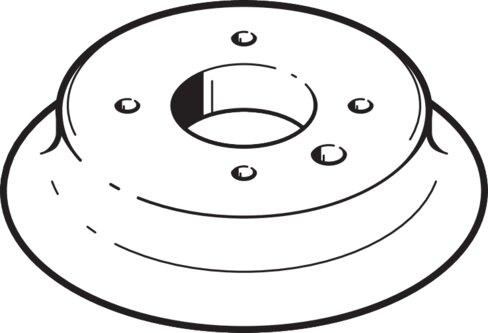

Reference imageConfirm configuration by manufacturer part number.
Festo
191005
Vacuum cup without connector ESV-80-SS
The Festo 191005 is a round, flat industrial component featuring an 80 mm transparent VMQ silicone suction cup with a 50 +/-5 Shore hardness and a 19.312 cm³ volume. Designed with an upward connection position and an any mounting position, this RoHS-compliant part operates within a pressure range of -95 kPa to 0 kPa and handles atmospheric air based on ISO 8573-1:2010 [7:-:-] across an ambient temperature range of -30 °C to 180 °C. It provides a holding force of 309.7 N at a nominal operating pressure of -70 kPa, maintains VDMA24364 Zone III LABS conformity, accommodates a minimum workpiece radius of 400 mm, and weighs 33 g with food industry usage detailed in supplementary materials. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191005
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191005.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 400 mm
- Suction cup diameter
- 80 mm
- Suction cup volume
- 19.312 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -30 °C...180 °C
- Holding force at nominal operating pressure
- 309.7 N
- Product weight
- 33 g
- Color
- Transparent
- Shore hardness
- 50 +/-5
- Note on materials
- RoHS compliant
- Suction cup material
- VMQ (silicone)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 191005. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
