Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

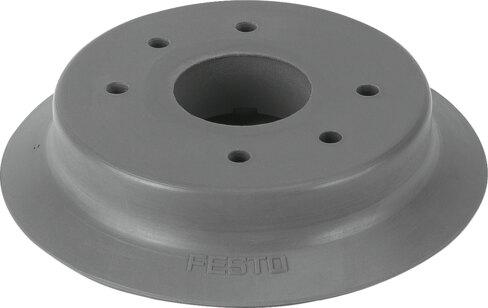

Reference imageConfirm configuration by manufacturer part number.
Festo
191010
Vacuum cup without connector ESV-100-SF
The Festo 191010 is a round, flat industrial suction cup featuring a 100 mm diameter, a 29.779 cm³ volume, and a minimum workpiece radius of 460 mm constructed from gray FPM with a 60 +/-5 Shore hardness and RoHS compliance. Weighing 59 g with an upward connection position and any mounting position, this component operates within a pressure range of -95 kPa to 0 kPa using atmospheric air based on ISO 8573-1:2010 [7:-:-], delivering a holding force of 503.6 N at its nominal operating pressure of -70 kPa across ambient temperatures from -10 °C to 200 °C. It conforms to VDMA24364-A1-L LABS (PWIS) standards and is for use in the food industry according to supplementary material information. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191010
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191010.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 460 mm
- Suction cup diameter
- 100 mm
- Suction cup volume
- 29.779 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-A1-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -10 °C...200 °C
- Holding force at nominal operating pressure
- 503.6 N
- Product weight
- 59 g
- Color
- Gray
- Shore hardness
- 60 +/-5
- Note on materials
- RoHS compliant
- Suction cup material
- FPM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 191010. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
