191018

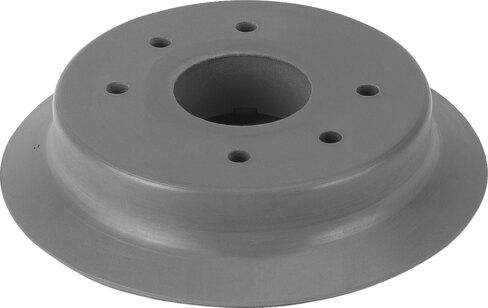

Name: Festo 191018 Vacuum cup without connector ESV-200-SF
Brand: Festo

Vacuum cup without connector ESV-200-SF

The Festo 191018 is a round, flat industrial component featuring a 200 mm suction cup diameter, a 245.454 cm³ suction cup volume, and an FPM suction cup material with a 60 +/-5 Shore hardness in gray. Designed with an upward connection position and flexible mounting position for any orientation, this 840 g part operates within a -95 kPa to 0 kPa pressure range and delivers a holding force of 1610 N at its -70 kPa nominal operating pressure. The RoHS compliant unit functions in ambient temperatures from -10 °C to 200 °C using atmospheric air based on ISO 8573-1:2010 [7:-:-] and meets VDMA24364-A1-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 191018
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 191018.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Min. workpiece radius: 680 mm
Suction cup diameter: 200 mm
Suction cup volume: 245.454 cm³
Connection position: up
Mounting position: Any
Suction cup shape: Round, at
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -70 kPa | -0.7 bar | -10.15 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity: VDMA24364-A1-L
For use in the food industry: See supplementary material information
Ambient temperature: -10 °C...200 °C
Holding force at nominal operating pressure: 1610 N
Product weight: 840 g
Color: Gray
Shore hardness: 60 +/-5
Note on materials: RoHS compliant
Suction cup material: FPM

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 191018. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
