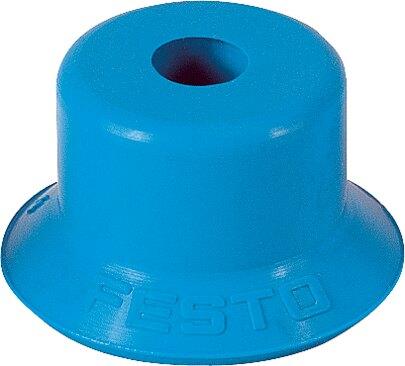

Reference imageConfirm configuration by manufacturer part number.
Festo
191024
Vacuum cup without connector ESV-20-EU
The Festo part number 191024 is a round, extra-deep blue PUR industrial component featuring a 20 mm suction cup diameter, a 0.722 cm³ suction cup volume, and a 30 mm minimum workpiece radius. It operates within a pressure range of -95 kPa to 0 kPa at an ambient temperature of -20 °C to 60 °C, delivering a holding force of 17 N at its nominal operating pressure of -70 kPa. This 1.6 g RoHS-compliant part supports any mounting position with an upward connection position and conforms to VDMA24364 Zone III LABS standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191024
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191024.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 30 mm
- Suction cup diameter
- 20 mm
- Suction cup volume
- 0.722 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, extra-deep
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...60 °C
- Holding force at nominal operating pressure
- 17 N
- Product weight
- 1.6 g
- Color
- Blue
- Shore hardness
- 60 +/-5
- Note on materials
- RoHS compliant
- Suction cup material
- PUR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 191024. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
