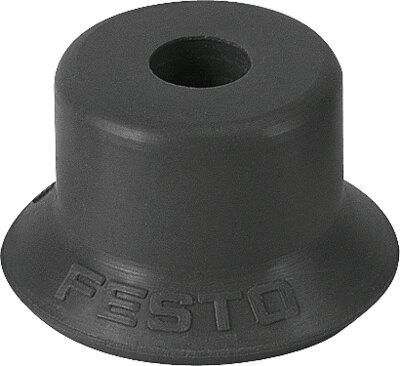

Reference imageConfirm configuration by manufacturer part number.
Festo
191026
Vacuum cup without connector ESV-20-EF
The Festo 191026 is an extra-deep round industrial suction cup with a 20 mm diameter and a 0.722 cm³ volume, engineered with an upward connection position and an all-direction mounting capability. Constructed from gray FPM with a 60 +/-5 Shore hardness, this RoHS-compliant component operates between -10 °C and 200 °C within a pressure range of -95 kPa to 0 kPa using atmospheric air. It delivers a holding force of 17 N at a nominal operating pressure of -70 kPa, features VDMA24364-A1-L LABS conformity, and weighs 1.6 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191026
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191026.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 30 mm
- Suction cup diameter
- 20 mm
- Suction cup volume
- 0.722 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, extra-deep
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-A1-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -10 °C...200 °C
- Holding force at nominal operating pressure
- 17 N
- Product weight
- 1.6 g
- Color
- Gray
- Shore hardness
- 60 +/-5
- Note on materials
- RoHS compliant
- Suction cup material
- FPM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 191026. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
