Festo
191032

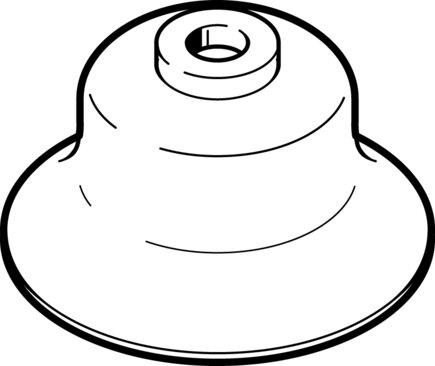

Vacuum cup without connector ESV-40-EU
The Festo 191032 is a round, extra-deep polyurethane industrial suction cup with a 40 mm diameter, a 3.733 cm³ volume, and a 60 +/-5 Shore hardness in blue. Operating within a pressure range of -95 kPa to 0 kPa at an ambient temperature of -20 °C to 60 °C, this 8 g component delivers a holding force of 67.6 N at its nominal operating pressure of -70 kPa. It features an upward connection position, versatile mounting in any position, a minimum workpiece radius of 80 mm, and VDMA24364 Zone III LABS conformity with RoHS compliance. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191032
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191032.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 80 mm
- Suction cup diameter
- 40 mm
- Suction cup volume
- 3.733 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, extra-deep
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...60 °C
- Holding force at nominal operating pressure
- 67.6 N
- Product weight
- 8 g
- Color
- Blue
- Shore hardness
- 60 +/-5
- Note on materials
- RoHS compliant
- Suction cup material
- PUR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 191032. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
