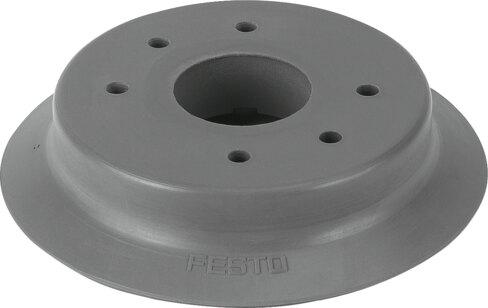

Reference imageConfirm configuration by manufacturer part number.
Festo
191050
Vacuum cup without connector ESV-100-EF
The Festo 191050 is an extra-deep round industrial component featuring a 100 mm suction cup diameter, a 79.812 cm³ suction cup volume, and a minimum workpiece radius of 200 mm. Constructed from gray FPM with a Shore hardness of 60 +/-5, this RoHS-compliant part supports an operating pressure range of -95 kPa to 0 kPa and delivers a holding force of 440.8 N at its nominal operating pressure of -70 kPa. Designed with an upward connection position, any mounting position, and an ambient temperature range of -10 °C to 200 °C, it utilizes atmospheric air based on ISO 8573-1:2010 [7:-:-] and meets VDMA24364-A1-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191050
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191050.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. workpiece radius
- 200 mm
- Suction cup diameter
- 100 mm
- Suction cup volume
- 79.812 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, extra-deep
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-A1-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -10 °C...200 °C
- Holding force at nominal operating pressure
- 440.8 N
- Product weight
- 65 g
- Color
- Gray
- Shore hardness
- 60 +/-5
- Note on materials
- RoHS compliant
- Suction cup material
- FPM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 191050. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
