191060

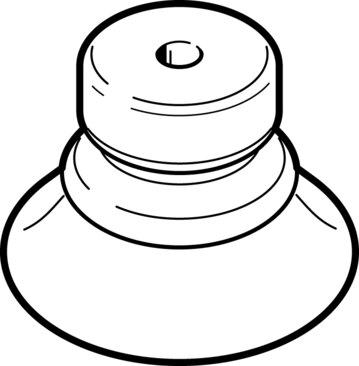

Name: Festo 191060 Vacuum cup without connector ESV-40-BN
Brand: Festo

Vacuum cup without connector ESV-40-BN

The Festo part number 191060 is a 9.8 g black round protective bellows 1.5-fold industrial component featuring a 40 mm NBR suction cup with a 50 +/-5 Shore hardness and a 9.5 mm height compensation. Operating within a pressure range of -95 kPa to 0 kPa at an ambient temperature of -10 °C to 70 °C, this component delivers a 52.3 N holding force at a nominal operating pressure of -70 kPa and a 11.699 cm³ suction cup volume. It accommodates any mounting position with an upward connection position, complies with VDMA24364-A1-L LABS conformity and RoHS material directives, and uses atmospheric air based on ISO 8573-1:2010 [7:-:-] as the operating medium with food industry usage outlined in supplementary materials. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 191060
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 191060.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Suction cup height compensation: 9.5 mm
Min. workpiece radius: 90 mm
Suction cup diameter: 40 mm
Suction cup volume: 11.699 cm³
Connection position: up
Mounting position: Any
Suction cup shape: round protective bellows 1.5-fold
Operating pressure: -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
Nominal operating pressure: -70 kPa | -0.7 bar | -10.15 psi
Operating medium: Atmospheric air based on ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity: VDMA24364-A1-L
For use in the food industry: See supplementary material information
Ambient temperature: -10 °C...70 °C
Holding force at nominal operating pressure: 52.3 N
Product weight: 9.8 g
Color: Black
Shore hardness: 50 +/-5
Note on materials: RoHS compliant
Suction cup material: NBR

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 191060. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
