Festo
191063

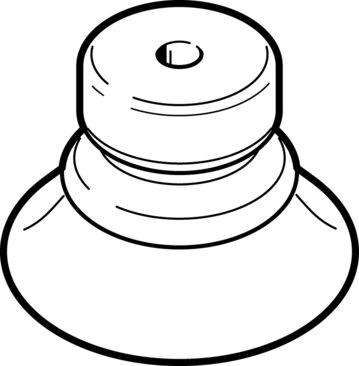

Vacuum cup without connector ESV-50-BN
The Festo 191063 is a round 1.5-fold protective bellows suction cup manufactured from black NBR with a 50 mm diameter, a 14.23 cm³ volume, and a Shore hardness of 50 +/-5. It features an 11 mm height compensation, an upward connection position, an operating pressure range of -95 kPa to 0 kPa, and delivers a holding force of 72.6 N at its nominal operating pressure of -70 kPa. Weighing 13.9 g, this RoHS compliant component operates in ambient temperatures between -10 °C and 70 °C using atmospheric air based on ISO 8573-1:2010 [7:-:-] and meets VDMA24364-A1-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191063
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191063.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 11 mm
- Min. workpiece radius
- 150 mm
- Suction cup diameter
- 50 mm
- Suction cup volume
- 14.23 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-A1-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -10 °C...70 °C
- Holding force at nominal operating pressure
- 72.6 N
- Product weight
- 13.9 g
- Color
- Black
- Shore hardness
- 50 +/-5
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 191063. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
