Festo
1910709

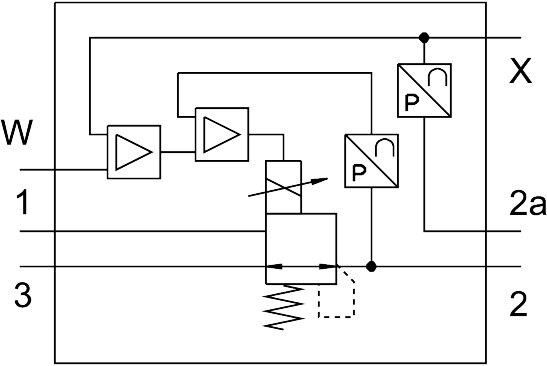

Proportional pressure control valve VPPL-3Q-3-Z-0L40H-V1-A-S1-8
The Festo 1910709 is a directly controlled piston regulator featuring a 3 mm nominal width for both pressurization and exhaust, operating via electrical actuation with a soft sealing principle and mechanical spring reset. This 3-way proportional pressure control valve closed offers a pressure regulation range of 0.4 bar to 40 bar (0.04 MPa to 4 MPa) within an operating pressure of up to 50 bar (5 MPa), incorporating an LED indicator display and reverse polarity protection for all electrical connections. Designed for mounting in any position though preferably upright, it features a max cable length of 30 m and a safety response where outlet pressure drops to 0 bar if the power supply cable breaks. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1910709
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1910709.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width pressurization
- 3 mm
- Exhaust nominal width
- 3 mm
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Any | Preferably upright
- Structural design
- Directly controlled piston regulator
- Short-circuit protection
- No
- Max. cable length
- 30 m
- Safety instructions
- VPPL safety position: if the power supply cable breaks, the outlet | pressure will drop to 0 bar.
- Reverse polarity protection
- for all electrical connections
- Reset method
- Mechanical spring
- Type of control
- directly
- Valve function
- 3-way proportional pressure control valve closed
- Display type
- LED indicator
- Operating pressure
- 5 MPa | 50 bar
- Pressure regulation range MPa
- 0.04 MPa...4 MPa
- Pressure regulation range
- 0.4 bar...40 bar
- Inlet pressure 1
- 0 bar...50 bar
- Inlet pressure 1 MPa
- 0 MPa...5 MPa
- Max. pressure hysteresis
- 0.04 MPa | 0.4 bar | 5.8 psi
- b-value
- 0.25
- C value
- 0.8 l/sbar
- Normal nominal ow rate (normalized to DIN 1343)
- 245 l/min
- Standard nominal ow rate 2-3
- 282 l/min
- Switching time off
- 654 ms
- On switching time
- 428 ms
- DC operating voltage range
- 21.6 V...27.6 V
- Duty cycle
- 100%
