Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
191074

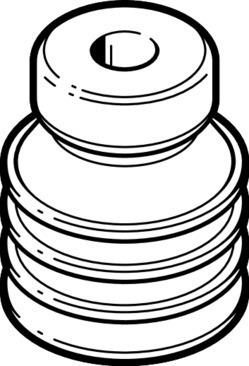

Vacuum cup without connector ESV-30-CS
The Festo 191074 is a round, 3.5-fold protective bellows suction cup manufactured from transparent VMQ silicone with a 50 +/-5 Shore hardness and a 30 mm diameter. It features a 10.5 mm height compensation, a 9.47 cm³ suction cup volume, an upward connection position, and can be mounted in any position for handling workpieces with a minimum radius of 80 mm. Operating within a pressure range of -95 kPa to 0 kPa and a temperature range of -30 °C to 180 °C, this 5.8 g component delivers a holding force of 20.8 N at its nominal operating pressure of -70 kPa. Submit the exact part number, quantity, and application requirements to request a quote for this RoHS-compliant industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191074
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191074.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 10.5 mm
- Min. workpiece radius
- 80 mm
- Suction cup diameter
- 30 mm
- Suction cup volume
- 9.47 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 3.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -30 °C...180 °C
- Holding force at nominal operating pressure
- 20.8 N
- Product weight
- 5.8 g
- Color
- Transparent
- Shore hardness
- 50 +/-5
- Note on materials
- RoHS compliant
- Suction cup material
- VMQ (silicone)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 191074. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
