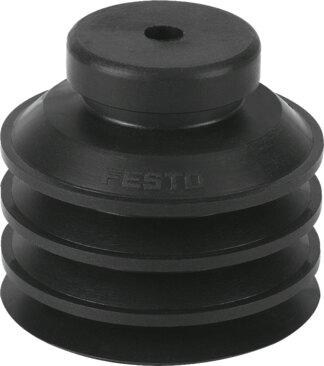

Reference imageConfirm configuration by manufacturer part number.
Festo
191075
Vacuum cup without connector ESV-40-CN
The Festo 191075 is a black, round 3.5-fold protective bellows suction cup manufactured from NBR with a 50 +/-5 Shore hardness and a product weight of 13 g. It features a 40 mm diameter, a 19.72 cm³ volume, 12.8 mm of height compensation, an upward connection position, and can be mounted in any position. Operating within a pressure range of -95 kPa to 0 kPa and a nominal operating pressure of -70 kPa, this component delivers a holding force of 42.4 N at nominal pressure for atmospheric air media conforming to ISO 8573-1:2010 [7:-:-] across ambient temperatures from -10 °C to 70 °C. The unit conforms to VDMA24364-A1-L LABS (PWIS), complies with RoHS material notes, and accommodates workpieces with a minimum radius of 100 mm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191075
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191075.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 12.8 mm
- Min. workpiece radius
- 100 mm
- Suction cup diameter
- 40 mm
- Suction cup volume
- 19.72 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 3.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-A1-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -10 °C...70 °C
- Holding force at nominal operating pressure
- 42.4 N
- Product weight
- 13 g
- Color
- Black
- Shore hardness
- 50 +/-5
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
