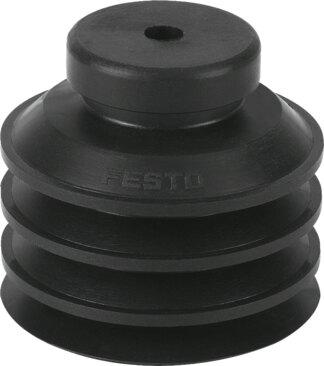

Reference imageConfirm configuration by manufacturer part number.
Festo
191077
Vacuum cup without connector ESV-50-CN
The Festo part number 191077 is a round protective bellows 3.5-fold industrial component with a 50 mm suction cup diameter, 17.5 mm height compensation, and a 38.92 cm³ suction cup volume. Constructed from black NBR with a 50 +/-5 Shore hardness and a product weight of 21.3 g, it operates within an ambient temperature range of -10 °C to 70 °C and provides a holding force of 63.4 N at its nominal operating pressure of -70 kPa. This RoHS compliant component features an upward connection position, can be mounted in any position, and is rated for an operating pressure between -95 kPa and 0 kPa using atmospheric air based on ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191077
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191077.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 17.5 mm
- Min. workpiece radius
- 180 mm
- Suction cup diameter
- 50 mm
- Suction cup volume
- 38.92 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 3.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -70 kPa | -0.7 bar | -10.15 psi
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-A1-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -10 °C...70 °C
- Holding force at nominal operating pressure
- 63.4 N
- Product weight
- 21.3 g
- Color
- Black
- Shore hardness
- 50 +/-5
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 191077. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
