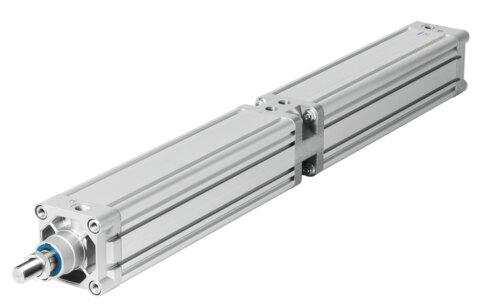

Reference imageConfirm configuration by manufacturer part number.
Festo
191110
Tandem cylinder DNCT-80- -PPV-A
The Festo part number 191110 is a double-acting industrial component featuring an 80 mm piston diameter, an adjustable stroke range from 3 mm to 500 mm, and a profile barrel structural design adhering to ISO 15552 norms. Operating on compressed air within a pressure range of 0.06 MPa to 1 MPa and temperatures from -20 °C to 80 °C, this unit delivers 5737 N of advancing force and 5442 N of retracting force at 6 bar. It incorporates adjustable pneumatic cushioning at both ends, position sensing via proximity switch, and a corrosion resistance class of 2 for moderate stress environments. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191110
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191110.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 3 mm...500 mm
- Piston diameter
- 80 mm
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.9 J
- Cushioning length
- 32 mm
- Theoretical force at 6 bar, retracting
- 5442 N
- Theoretical force at 6 bar, advancing
- 5737 N
- Type of mounting
- With accessories
- Pneumatic connection
- G3/8
- Note on materials
- RoHS compliant
- Cover material
- Die-cast aluminum
- Seals material
- NBR | TPE-U(PU)
- Housing material
- Wrought aluminum alloy | Smooth-anodized
- Piston rod material
- High-alloy steel
