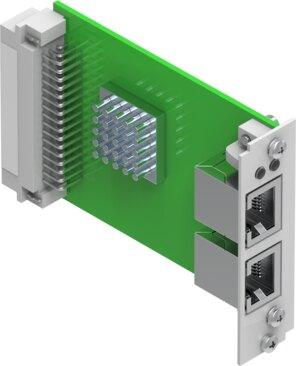

Reference imageConfirm configuration by manufacturer part number.
Festo
1911916
Interface CAMC-F-PN
The Festo 1911916 is a plug-in module for CMMP-AS...-M3 featuring a PROFINET protocol with an FHPP communication profile, 10/100 Mbit/s baud rate, and dual RJ45 socket fieldbus interfaces supporting star, ring, and line topologies. This component measures 19 mm by 90 mm by 65 mm, weighs 75 g, provides an IP20 degree of protection in the mounted state, and operates within an ambient temperature range of 0 °C to 50 °C. It is CE marked as per the EU EMC directive, conforms to VDMA24364 Zone III LABS standards, and includes LED indicators for bus error, Ethernet communication activity, Ethernet line monitoring, and system fault. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1911916
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1911916.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- 19 mm x 90 mm x 65 mm
- CE marking (see declaration of conformity)
- As per EU EMC directive
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...70 °C
- Relative air humidity
- 5 - 95% | Non-condensating
- Degree of protection
- IP20 | In mounted state
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 75 g
- Type of mounting
- Plug-in module for CMMP-AS...-M3
- Note on materials
- RoHS compliant
- Mounting position
- Any
- Protocol
- PROFINET
- Communication prole
- FHPP
- Baud rate
- 10/100 Mbit/s (full/half)
- Topologies
- Star | Ring | Line
- Media redundancy
- MRP
- IP address allocation
- FCT | DCP
- Fieldbus interface
- 2x socket RJ45
- Minimum cycle time
- 1 ms
- LED indicators
- Bus error | Ethernet communication activity | Ethernet line monitoring | System fault
- Conguration support
- GSDML
- Parameterization
- FCT
- Additional functions
- Conformance Class B | DCP | IRT-compatible | LLDP | MRP
