Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

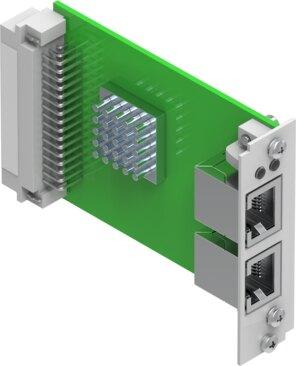

Reference imageConfirm configuration by manufacturer part number.
Festo
1911917
Interface CAMC-F-EP
The Festo 1911917 is a plug-in module designed for CMMP-AS...-M3 featuring an EtherNet/IP protocol with FHPP communication profile, supporting 10/100 Mbit/s baud rates across star, ring, and line topologies. Weighing 75 g with dimensions of 19 mm x 90 mm x 65 mm, this IP20-rated industrial component includes two RJ45 sockets, DLR media redundancy, and a minimum cycle time of 1 ms with LED indicators for network status, module state, and communication activity. It operates within an ambient temperature range of 0 °C to 50 °C, exhibits VDMA24364 Zone III LABS conformity, and complies with the EU EMC directive and RoHS material standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1911917
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1911917.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- 19 mm x 90 mm x 65 mm
- CE marking (see declaration of conformity)
- As per EU EMC directive
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...70 °C
- Relative air humidity
- 5 - 95% | Non-condensating
- Degree of protection
- IP20 | In mounted state
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 75 g
- Type of mounting
- Plug-in module for CMMP-AS...-M3
- Note on materials
- RoHS compliant
- Mounting position
- Any
- Protocol
- EtherNet/IP
- Communication prole
- FHPP
- Baud rate
- 10/100 Mbit/s (full/half)
- Topologies
- Star | Ring | Line
- Media redundancy
- DLR
- IP address allocation
- FCT | DHCP | BOOTP | DIP switch
- Fieldbus interface
- 2x socket RJ45
- Minimum cycle time
- 1 ms
- LED indicators
- Ethernet communication activity | Ethernet line monitoring | Module state | Network status
- Conguration support
- EDS
- Parameterization
- FCT
- Additional functions
- AddressConictDetection (ACD) | Integrated switch
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1911917. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
