Festo
191194

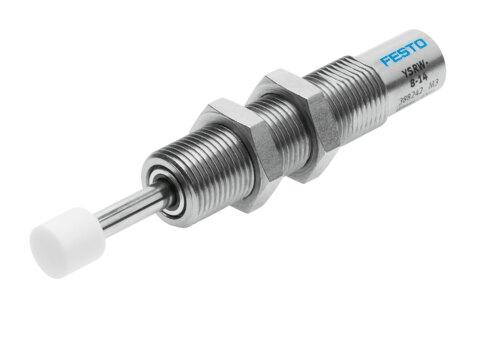

Shock absorber YSRW-8-14
The Festo part number 191194 is an industrial component featuring a size 8 design with a 14 mm stroke and self-adjusting cushioning with a soft characteristic curve. Operating in a single-acting pushing mode, this 34 g unit delivers a maximum stop force of 500 N, a maximum energy absorption of 4 J per stroke, and features a corrosion resistance class of 2 for moderate stress environments. It functions within an ambient temperature range of -10 °C to 80 °C and includes a 14 mm cushioning length with a reset time of 0.2 s at room temperature. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191194
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191194.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 8
- Stroke
- 14 mm
- Cushioning
- Self-adjusting | Soft characteristic curve
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 3 m/s
- Reset time at room temperature
- 0.2 s
- Reset time at min. ambient temperature
- 1 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...80 °C
- Cushioning length
- 14 mm
- Max. stop force
- 500 N
- Max. energy absorption per stroke
- 4 J
- Max. energy absorption per hour
- 21000 J
- Max. residual energy
- 0.02 J
- Resetting force
- 2.5 N
- Min. insertion force
- 18 N
- Product weight
- 34 g
- Load range
- 10 kg
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 191194. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
