Festo
191205

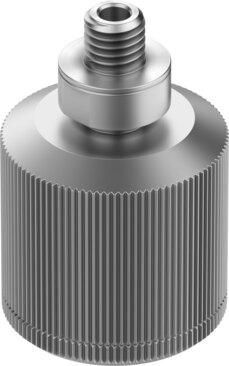

Angle compensator ESWA-3
The Festo part number 191205 is an industrial ball joint suction cup holder featuring a size 3 classification, an M4 suction cup mounting, and an M4 pneumatic connection with an external thread for any mounting position. Constructed with a nickel-plated brass and aluminum housing, NBR seals, and RoHS compliant materials, this component operates within a pressure range of -0.95 bar to 4 bar and an ambient temperature range of 0 °C to 60 °C. It provides a plus or minus 15-degree angle compensator, a product weight of 9 g, VDMA24364-A1-L LABS conformity, and a CRC classification of 1 for low corrosion stress. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191205
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191205.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Angle compensator +/-
- 15 deg
- Mounting position
- Any
- Structural design
- Ball joint
- Classication of suction cup holder
- Size 3
- Operating pressure
- -0.95 bar...4 bar
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 9 g
- Type of mounting
- With external thread
- Suction cup mounting
- M4
- Pneumatic connection
- M4
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Aluminum | Brass, nickel-plated
