Festo
191207

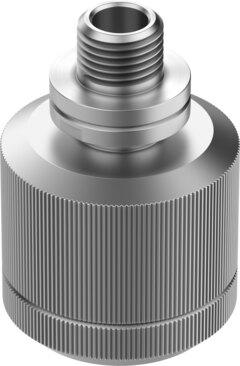

Angle compensator ESWA-5
The Festo 191207 is a ball joint industrial component featuring a size 5 suction cup holder with a ±15 degree angle compensator and an operating pressure range of -0.95 bar to 4 bar. Constructed with a nickel-plated brass and aluminum housing, NBR seals, and external thread mounting, this 57 g unit accommodates M10 pneumatic and suction cup connections and operates in ambient temperatures from 0 °C to 60 °C in any mounting position. It exhibits a CRC corrosion resistance class of 1, VDMA24364-A1-L LABS conformity, and RoHS material compliance. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191207
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191207.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Angle compensator +/-
- 15 deg
- Mounting position
- Any
- Structural design
- Ball joint
- Classication of suction cup holder
- Size 5
- Operating pressure
- -0.95 bar...4 bar
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 57 g
- Type of mounting
- With external thread
- Suction cup mounting
- M10
- Pneumatic connection
- M10
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Aluminum | Brass, nickel-plated
