Festo
191212

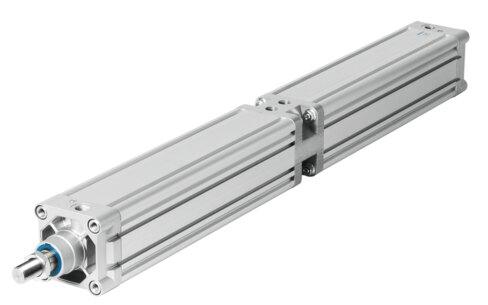

Tandem cylinder DNCT-50- -PPV-A-S6
The Festo 191212 is a double-acting industrial component featuring a 50 mm piston diameter, an adjustable stroke ranging from 2 mm to 500 mm, and a profile barrel structural design based on the ISO 15552 norm. It operates at pressures between 0.06 MPa and 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], delivering a theoretical advancing force of 2168 N and a retracting force of 1980 N at 6 bar. Equipped with adjustable pneumatic cushioning at both ends, a 22 mm cushioning length, and heat-resistant seals supporting ambient temperatures from -20 °C to 120 °C, this unit provides position sensing via proximity switches and features a CRC rating of 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191212
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191212.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 2 mm...500 mm
- Piston diameter
- 50 mm
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Heat-resistant seals max. 120°C
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...120 °C
- Impact energy in the end positions
- 0.2 J
- Cushioning length
- 22 mm
- Theoretical force at 6 bar, retracting
- 1980 N
- Theoretical force at 6 bar, advancing
- 2168 N
- Type of mounting
- With accessories
- Pneumatic connection
- G1/4
- Note on materials
- RoHS compliant
- Cover material
- Die-cast aluminum
- Seals material
- FPM
- Housing material
- Wrought aluminum alloy | Smooth-anodized
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 191212. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
