Festo
191216

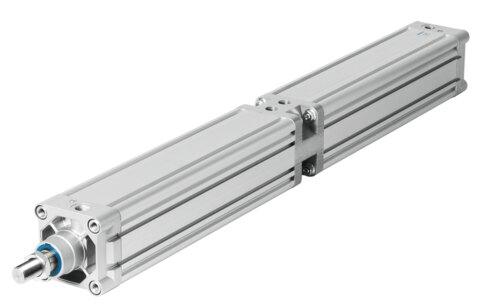

Tandem cylinder DNCT-125- -PPV-A-S6
The Festo part number 191216 is a double-acting industrial component featuring a 125 mm piston diameter and an adjustable stroke length from 3 mm to 500 mm, built on the ISO 15552 norm with a profile barrel structure. This unit operates within a pressure range of 0.06 MPa to 1 MPa using compressed air per ISO 8573-1:2010 [7:4:4], delivering a theoretical force of 14244 N advancing and 13762 N retracting at 6 bar. Featuring adjustable pneumatic cushioning at both ends, a 42 mm cushioning length, 5 J impact energy in the end positions, and position sensing via proximity switch, it functions within an ambient temperature range of -20 °C to 120 °C utilizing variants with heat-resistant seals. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191216
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191216.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 3 mm...500 mm
- Piston diameter
- 125 mm
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Heat-resistant seals max. 120°C
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...120 °C
- Impact energy in the end positions
- 5 J
- Cushioning length
- 42 mm
- Theoretical force at 6 bar, retracting
- 13762 N
- Theoretical force at 6 bar, advancing
- 14244 N
- Type of mounting
- With accessories
- Pneumatic connection
- G1/2
- Note on materials
- RoHS compliant
- Cover material
- Die-cast aluminum
- Seals material
- FPM
- Housing material
- Wrought aluminum alloy | Smooth-anodized
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 191216. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
