Festo
191217

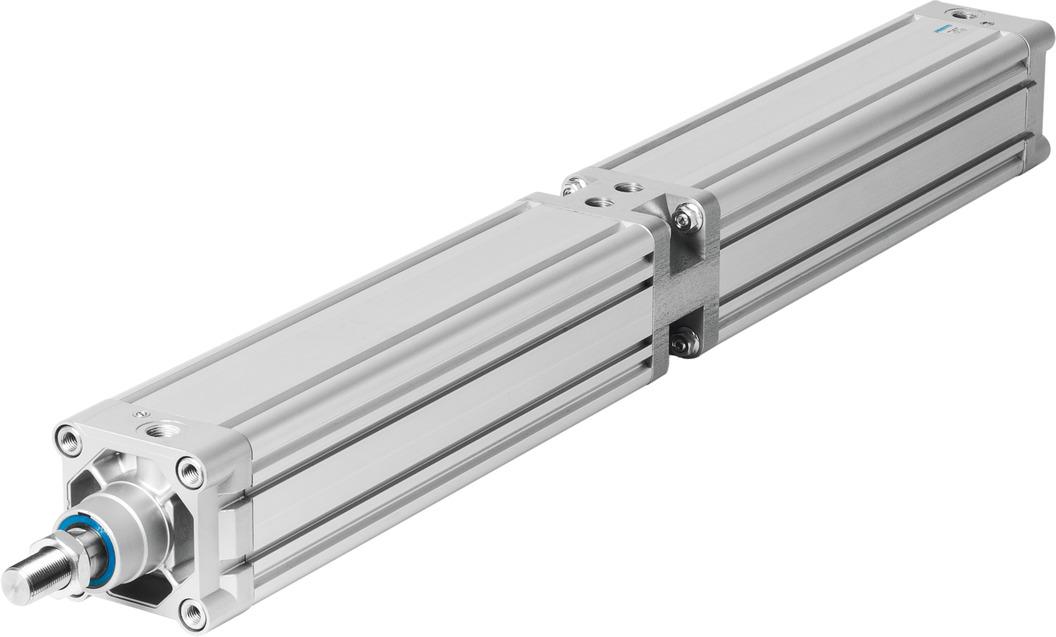

Tandem cylinder DNCT-1 1/4""- -PPV-A-S6
The Festo part number 191217 is a double-acting industrial component featuring a stroke length of 2 mm to 500 mm based on the ISO 15552 norm. Operating at a pressure range of 0.06 MPa to 1 MPa (0.6 bar to 10 bar), this unit utilizes compressed air as per ISO 8573-1:2010 [7:4:4] with 1/8 NPT pneumatic connections and adjustable pneumatic cushioning at both ends over a 20 mm cushioning length. Constructed with die-cast aluminum covers, a wrought aluminum alloy housing, a high-alloy stainless steel piston rod, and FPM seals, the assembly achieves a corrosion resistance class of 2 and a basic weight of 870 g with a 0 mm stroke. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191217
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191217.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 2 mm...500 mm
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mode of operation
- Double-acting
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cushioning length
- 20 mm
- Basic weight with 0 mm stroke
- 870 g
- Pneumatic connection
- 1/8 NPT
- Note on materials
- RoHS-compliant
- Cover material
- Die-cast aluminum
- Seals material
- FPM
- Housing material
- Wrought aluminum alloy
- Piston rod material
- High-alloy stainless steel
