Festo
191219

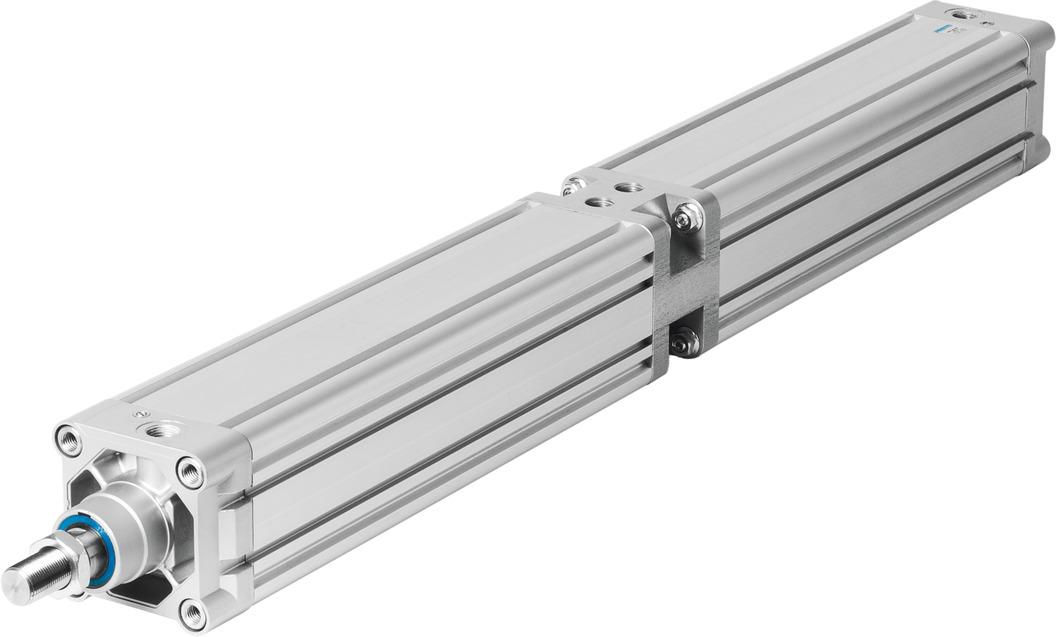

Tandem cylinder DNCT-2""- -PPV-A-S6
The Festo part number 191219 is a double-acting industrial component featuring a stroke range from 2 mm to 500 mm and operating pressures between 0.06 MPa and 1 MPa. Built to ISO 15552 norms, this unit integrates adjustable pneumatic cushioning at both ends with a 22 mm cushioning length and a 1/4 NPT pneumatic connection. Constructed with a die-cast aluminum cover, wrought aluminum alloy housing, high-alloy steel piston rod, and FPM seals, it achieves a corrosion resistance class of CRC 2 and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this RoHS-compliant component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191219
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191219.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 2 mm...500 mm
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mode of operation
- Double-acting
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cushioning length
- 22 mm
- Pneumatic connection
- 1/4 NPT
- Note on materials
- RoHS-compliant
- Cover material
- Die-cast aluminum
- Seals material
- FPM
- Housing material
- Wrought aluminum alloy
- Piston rod material
- High-alloy steel
