Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

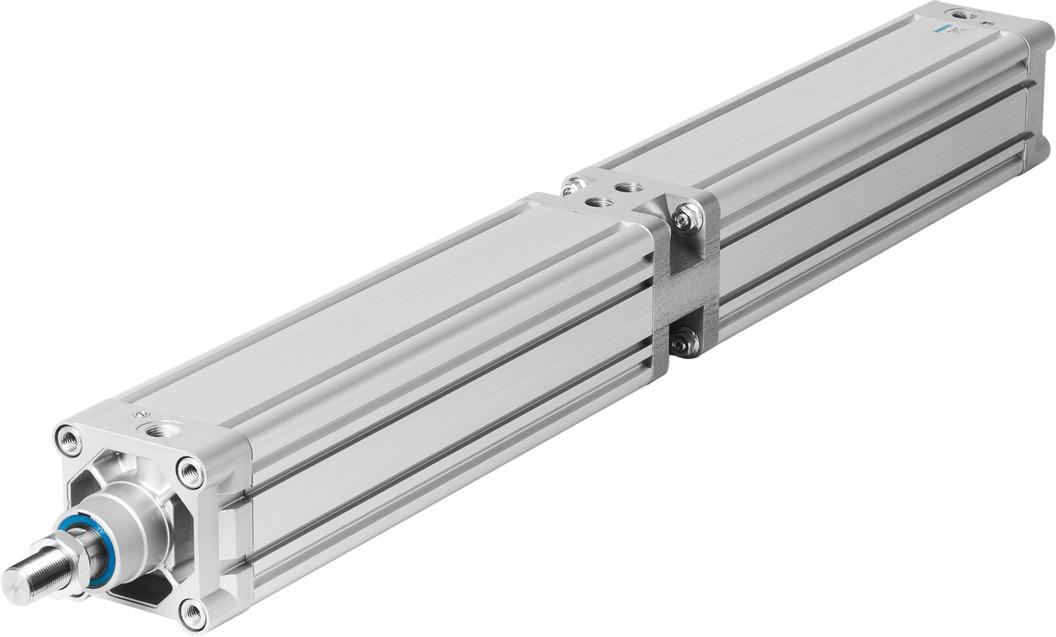

Reference imageConfirm configuration by manufacturer part number.
Festo
191220
Tandem cylinder DNCT-2 1/2""- -PPV-A-S6
The Festo part number 191220 is a double-acting industrial component based on the ISO 15552 norm, featuring a stroke range from 3 mm to 500 mm and adjustable pneumatic cushioning at both ends with a 22 mm cushioning length. Constructed with a die-cast aluminum cover, wrought aluminum alloy housing, high-alloy steel piston rod, and FPM seals, this component operates within a pressure range of 0.06 MPa to 1 MPa (0.6 bar to 10 bar) using compressed air as per ISO 8573-1:2010 [7:4:4]. It features a 3/8 NPT pneumatic connection, a basic weight of 3300 g at 0 mm stroke, a corrosion resistance class of CRC 2, and VDMA24364-B2-L LABS conformity while utilizing RoHS-compliant materials and allowing oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191220
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191220.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 3 mm...500 mm
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mode of operation
- Double-acting
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cushioning length
- 22 mm
- Basic weight with 0 mm stroke
- 3300 g
- Pneumatic connection
- 3/8 NPT
- Note on materials
- RoHS-compliant
- Cover material
- Die-cast aluminum
- Seals material
- FPM
- Housing material
- Wrought aluminum alloy
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 191220. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
