Festo
191222

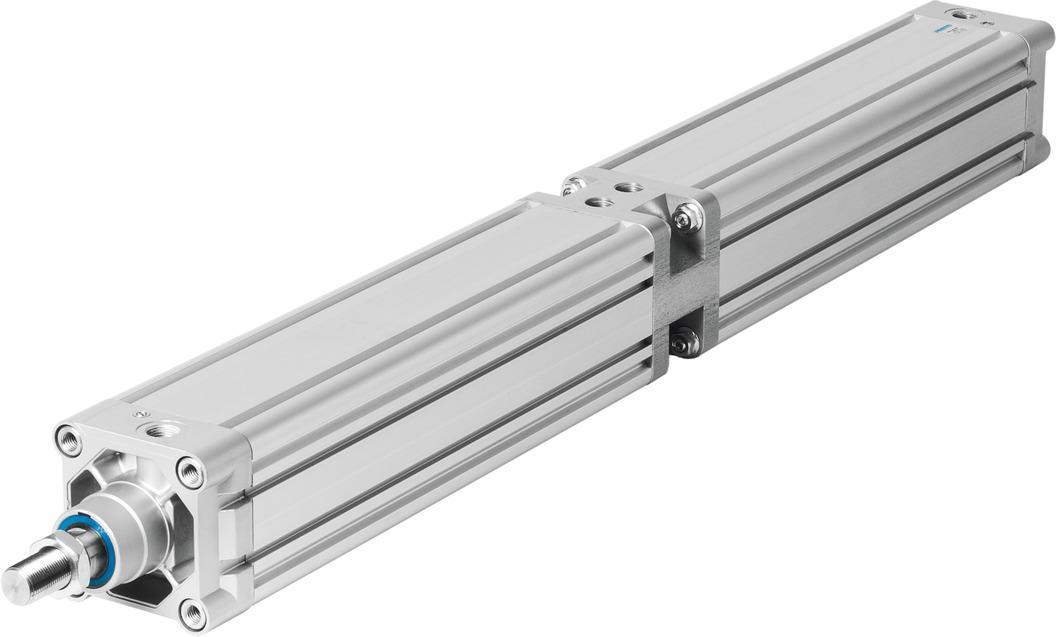

Tandem cylinder DNCT-4""- -PPV-A-S6
The Festo part number 191222 is a double-acting industrial component built to ISO 15552 norms with a stroke ranging from 3 mm to 500 mm and an operating pressure of 0.06 MPa to 1 MPa (0.6 bar to 10 bar). Featuring a wrought aluminum alloy housing, die-cast aluminum cover, high-alloy steel piston rod, and FPM seals, this RoHS-compliant unit operates with compressed air per ISO 8573-1:2010 [7:4:4] and includes adjustable pneumatic cushioning at both ends with a 32 mm cushioning length. It provides a corrosion resistance class of CRC 2, VDMA24364-B2-L LABS conformity, and allows for oil lubrication operation which is required for further use via its 1/2 NPT pneumatic connection. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191222
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191222.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 3 mm...500 mm
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mode of operation
- Double-acting
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cushioning length
- 32 mm
- Pneumatic connection
- 1/2 NPT
- Note on materials
- RoHS-compliant
- Cover material
- Die-cast aluminum
- Seals material
- FPM
- Housing material
- Wrought aluminum alloy
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 191222. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
