Festo
191227

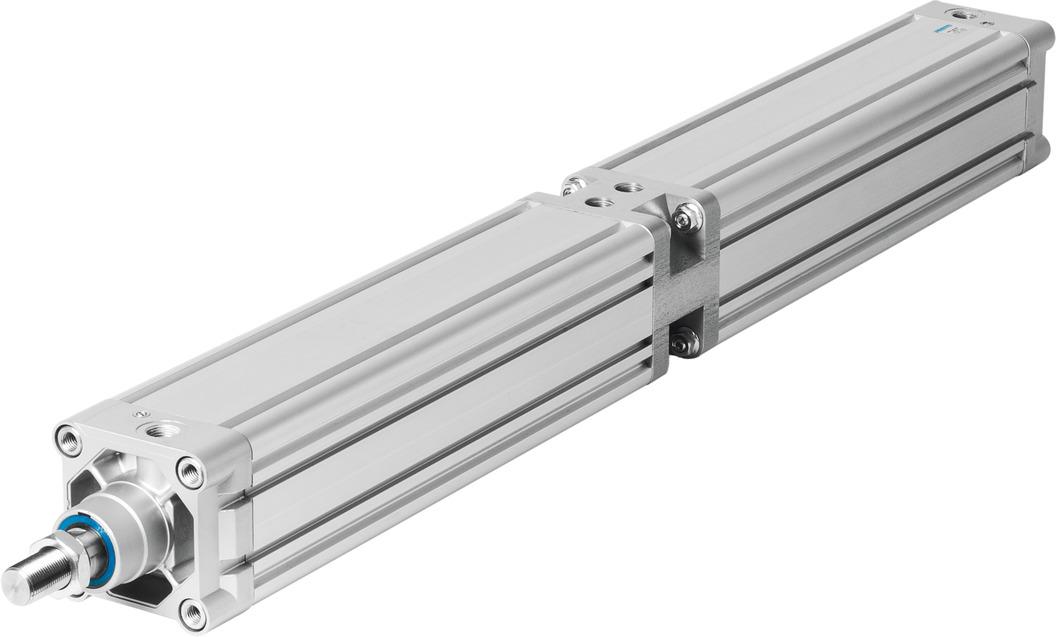

Tandem cylinder DNCT-2 1/2""- -PPV-A
The Festo 191227 is a double-acting industrial component based on the ISO 15552 norm featuring a stroke range from 3 mm to 500 mm and adjustable pneumatic cushioning at both ends over a 22 mm cushioning length. Constructed with die-cast aluminum covers, a wrought aluminum alloy housing, a high-alloy steel piston rod, and NBR and TPE-U(PU) seals, this RoHS-compliant unit operates between 0.06 MPa and 1 MPa using ISO 8573-1:2010 [7:4:4] compressed air where oil lubrication is possible and required for continued operation. It delivers a basic weight of 3300 g at 0 mm stroke, a 3/8 NPT pneumatic connection, a CRC 2 moderate corrosion resistance rating, and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191227
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191227.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 3 mm...500 mm
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mode of operation
- Double-acting
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cushioning length
- 22 mm
- Basic weight with 0 mm stroke
- 3300 g
- Pneumatic connection
- 3/8 NPT
- Note on materials
- RoHS-compliant
- Cover material
- Die-cast aluminum
- Seals material
- NBR | TPE-U(PU)
- Housing material
- Wrought aluminum alloy
- Piston rod material
- High-alloy steel
