1914788

Name: Festo 1914788 Ball valve actuator unit VZBA-3/4"-GGG-63-32L-F0405-V4V4T-PP30-R-90-C
Brand: Festo

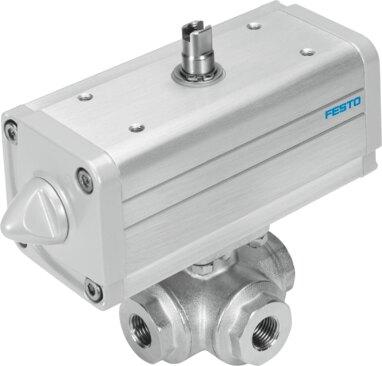

Ball valve actuator unit VZBA-3/4"-GGG-63-32L-F0405-V4V4T-PP30-R-90-C

The Festo part number 1914788 is a pneumatic 3-way ball valve featuring an L bore, an Rp3/4 fitting connection, and a nominal width DN of 20 housed in high-alloy stainless steel. It operates at pressures from 6 bar to 8.4 bar with a nominal pressure PN of 63, accommodating media temperatures between -10 °C and 200 °C and ambient temperatures from -10 °C to 80 °C. Designed for in-line installation in any mounting position, this RoHS compliant assembly handles compressed air, inert gas, water, and neutral liquids with a Kv flow rate of 5.1 m³/h. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1914788
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1914788.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: 3-way ball valve | L bore
Actuation type: Pneumatic
Mounting position: Any
Type of mounting: In-line installation
Fitting connection: Rp3/4
Switching position indication: Slot direction = ow direction
Nominal width DN: 20
Operating pressure: 6 bar...8.4 bar
Nominal pressure of tting PN: 63
Medium: Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Temperature of medium: -10 °C...200 °C
Ambient temperature: -10 °C...80 °C
Flow rate Kv type L: 5.1 m³/h
Max. surface temperature of assembly: TX
Explosion group of assembly: IIC, IIIC
Note on materials: RoHS compliant
LABS (PWIS) conformity: VDMA24364 Zone III
Housing material: high-alloy stainless steel
Material number of housing: 1,4408
Seals material: PTFE | PTFE-reinforced
Ball material: high-alloy stainless steel
Material number for ball: 1,4408
Shaft material: high-alloy stainless steel
Material number for shaft: 1,4401
Product weight: 2050 g

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1914788. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
