1915410

Name: Festo 1915410 Ball valve actuator unit VZBC-100-FF-16-22-F0710-V4V4T-PS240-R-90-4-C
Brand: Festo

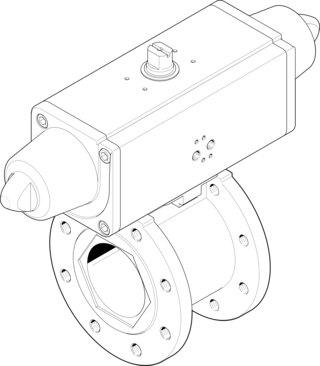

Ball valve actuator unit VZBC-100-FF-16-22-F0710-V4V4T-PS240-R-90-4-C

The Festo part number 1915410 is an industrial 2-way ball valve with a quarter-turn pneumatic actuator configured for in-line installation in any mounting position. Constructed with a high-alloy stainless steel ring housing featuring a threaded flange, this assembly handles a nominal width DN of 100, a nominal pressure PN of 16, and an operating pressure range of 6 bar to 8.4 bar while delivering a flow rate Kv of 1414 m³/h. The unit accommodates a medium temperature of -10 °C to 200 °C and an ambient temperature range of -10 °C to 80 °C, operating with compressed air, inert gas, water without water vapor, or neutral liquids. RoHS compliant and VDMA24364 Zone III LABS conformity rated, it features explosion group ratings for assembly of IIC and IIIC with a TX maximum surface temperature and includes a slot direction switching position indication matching the flow direction. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1915410
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1915410.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: 2-way ball valve | Quarter turn actuator
Actuation type: Pneumatic
Mounting position: Any
Type of mounting: In-line installation
Fitting connection: Ring housing with threaded ange
Switching position indication: Slot direction = ow direction
Nominal width DN: 100
Operating pressure: 6 bar...8.4 bar
Nominal pressure of tting PN: 16
Medium: Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Temperature of medium: -10 °C...200 °C
Ambient temperature: -10 °C...80 °C
Flow rate Kv: 1414 m³/h
Max. surface temperature of assembly: TX
Explosion group of assembly: IIC, IIIC
Note on materials: RoHS compliant
LABS (PWIS) conformity: VDMA24364 Zone III
Housing material: high-alloy stainless steel
Material number of housing: 1,4408
Seals material: PTFE | PTFE-reinforced
Ball material: high-alloy stainless steel
Material number for ball: 1,4408
Shaft material: high-alloy stainless steel
Material number for shaft: 1,4401
Product weight: 31900 g
