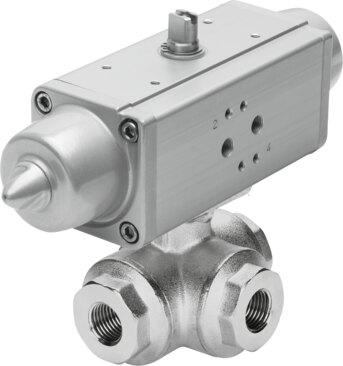

Reference imageConfirm configuration by manufacturer part number.
Festo
1915543
Ball valve actuator unit VZBA-1/4"-GGG-63-32L-F0304-V4V4T-PS30-R-90-4-C
The Festo 1915543 is a 3-way pneumatic ball valve featuring an L bore, an Rp1⁄4 fitting connection, and a nominal width DN of 8 in an in-line installation design with any mounting position. Constructed from high-alloy stainless steel with RoHS compliance and VDMA24364 Zone III LABS conformity, this component handles operating pressures from 6 bar to 8.4 bar, a nominal pressure PN of 63, and medium temperatures ranging from -10 °C to 200 °C. It accommodates compressed air, inert gas, water without water vapor, and neutral liquids, supported by a flow rate Kv type L of 4.5 m³/h, explosion groups IIC and IIIC, and a slot direction matching the flow direction for switching position indication. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1915543
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1915543.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 3-way ball valve | L bore
- Actuation type
- Pneumatic
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp1/4
- Switching position indication
- Slot direction = ow direction
- Nominal width DN
- 8
- Operating pressure
- 6 bar...8.4 bar
- Nominal pressure of tting PN
- 63
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -10 °C...200 °C
- Ambient temperature
- -10 °C...80 °C
- Flow rate Kv type L
- 4.5 m³/h
- Max. surface temperature of assembly
- TX
- Explosion group of assembly
- IIC, IIIC
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- high-alloy stainless steel
- Material number of housing
- 1,4408
- Seals material
- PTFE | PTFE-reinforced
- Ball material
- high-alloy stainless steel
- Material number for ball
- 1,4408
- Shaft material
- high-alloy stainless steel
- Material number for shaft
- 1,4401
- Product weight
- 2950 g
- Explosion prevention and protection
- Zone 1 (ATEX)
