Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

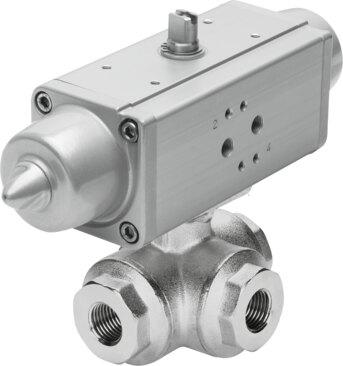

Reference imageConfirm configuration by manufacturer part number.
Festo
1915749
Ball valve actuator unit VZBA-11/4"-GGG-63-32T-F0405-V4V4T-PS53-R-90-4-C
This Festo 1915749 industrial component features a 3-way ball valve with a T hole and pneumatic actuation designed for in-line installation in any mounting position with an Rp1 1/4 fitting connection. It operates at a nominal width DN of 32, a nominal pressure of fitting PN 63, and an operating pressure range of 6 bar to 8.4 bar, accommodating media including compressed air, inert gas, water without water vapor, and neutral liquids across a medium temperature range of -10 °C to 200 °C. The assembly includes a switching position indication where slot direction matches flow direction, and it complies with RoHS and VDMA24364 Zone III LABS conformity standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1915749
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1915749.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 3-way ball valve | T hole
- Actuation type
- Pneumatic
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp1 1/4
- Switching position indication
- Slot direction = ow direction
- Nominal width DN
- 32
- Operating pressure
- 6 bar...8.4 bar
- Nominal pressure of tting PN
- 63
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -10 °C...200 °C
- Ambient temperature
- -10 °C...80 °C
- Flow rate Kv type T corner
- 18 m³/h
- Flow rate Kv type T straight
- 36.5 m³/h
- Max. surface temperature of assembly
- TX
- Explosion group of assembly
- IIC, IIIC
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- high-alloy stainless steel
- Material number of housing
- 1,4408
- Seals material
- PTFE | PTFE-reinforced
- Ball material
- high-alloy stainless steel
- Material number for ball
- 1,4408
- Shaft material
- high-alloy stainless steel
- Material number for shaft
- 1,4401
- Product weight
- 6070 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1915749. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
