Festo
19169

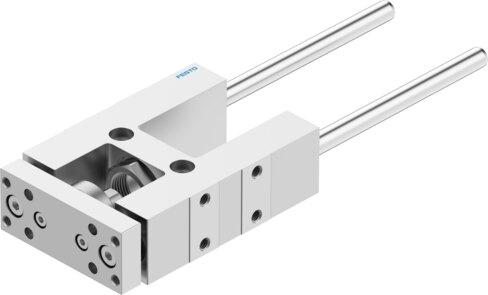

Guide unit FEN-20- -GF
The Festo part number 19169 is an industrial component featuring a structural design with a plain-bearing guide, a size of 20, and a stroke range of 2 mm to 250 mm. Built with an anodized wrought aluminum alloy housing and yoke plate alongside a high-alloy steel guide component, this unit operates within an ambient temperature range of -20 °C to 80 °C in any mounting position via internal thread. It provides a displacement force of 15 N, a basic weight of 873 g at 0 mm stroke with an additional 12 g per 10 mm stroke, and a moving mass of 269 g at 0 mm stroke with 12 g added per 10 mm stroke. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 19169
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 19169.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 20
- Stroke
- 2 mm...250 mm
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Explosion prevention and protection
- Observe the information on the certicate
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...80 °C
- Displacement force
- 15 N
- Moving mass at 0 mm stroke
- 269 g
- Additional moving mass per 10 mm stroke
- 12 g
- Basic weight with 0 mm stroke
- 873 g
- Additional weight per 10 mm stroke
- 12 g
- Center of gravity of moving mass with 0 mm stroke
- 42 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.7 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
- Material of guide component
- High-alloy steel
- Housing material
- Wrought aluminum alloy, anodized
- Material of yoke plate
- Wrought aluminum alloy, anodized
