Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
191986

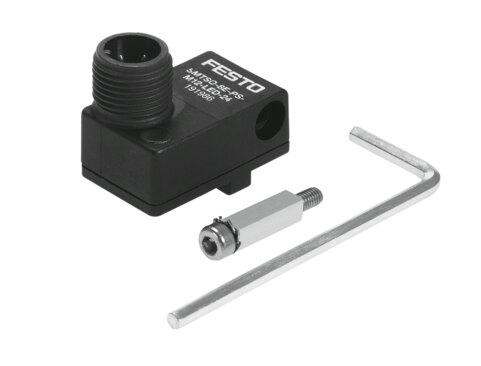

Proximity sensor SMTSO-8E-PS-M12-LED-24
The Festo part number 191986 is an industrial magneto-inductive position sensor designed for T-slot mounting based on the EN 60947-5-2 norm. Featuring welding field and welding spatter resistance, this RoHS-compliant component operates within an ambient temperature range of -25 °C to 70 °C and freezes its PNP N.O. switching output signal during the welding process. It delivers a maximum switching frequency of 14 Hz, a repetition accuracy of 0.2 mm, and a max output current of 200 mA with a DC switching capacity of 6 W. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 191986
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 191986.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- For T-slot
- Based on norm
- EN 60947-5-2
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Special features
- Welding eld resistant | Welding spatter-resistant
- Note on materials
- RoHS compliant
- Application note
- Support / actuator-sensor overview "The right sensor for the actuator"
- Measured variable
- Position
- Measuring principle
- Magneto-inductive
- Ambient temperature
- -25 °C...70 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- PNP
- Switching characteristics during the welding process
- Output signal freezes
- Switching element function
- N.O. contact
- On time
- 38 ms
- Switch-off time
- 20 ms
- Max. switching frequency
- 14 Hz
- Max. output current
- 200 mA
- Max. switching capacity DC
- 6 W
- Voltage drop
- 3 V
- Residual current
- 0.01 mA
- Short-circuit protection
- Yes
- Overload protection
- Yes
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 10%
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 191986. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
