Festo
192009
Plug SEA-3GS-M8-S
The Festo 192009 is an industrial component featuring an M8x1 A-coded round plug with a straight cable outlet, three pins, and a screw-type lock with a hexagon AF 9 and longitudinal knurl for electrical connection 1. Connection 2 functions on the control side with a screw terminal and eight pins, supporting a DC and AC operating voltage range of up to 60 V, a current rating of 3 A at 40° C, and 1.5 kV surge resistance. This 6 g part conforms to EN 61076-2-104 and EN 61984 standards, accommodates any mounting position, and accepts cable diameters from 2.5 mm to 5 mm with a nominal conductor cross section of 0.14 mm² to 0.5 mm² via a Pg7 cable fitting. Submit part number 192009, desired quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 192009
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 192009.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 61076-2-104 | EN 61984
- Mounting position
- Any
- Product weight
- 6 g
- Pack size
- 1
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104

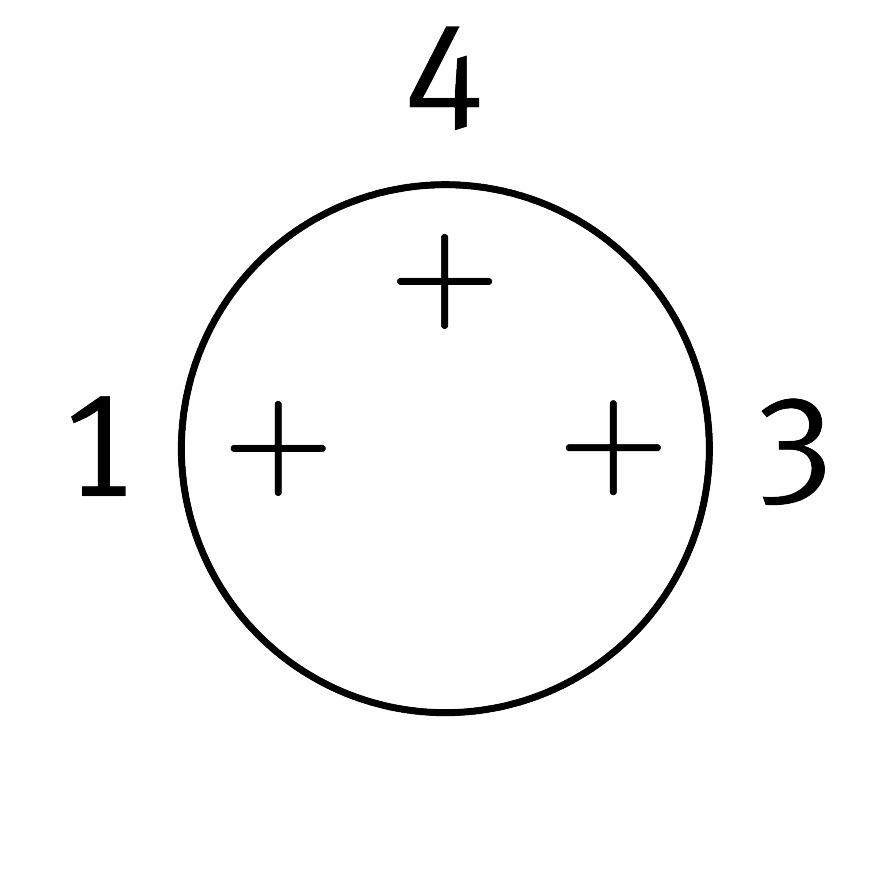

- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- Screw-type lock with hexagon AF 9 and longitudinal knurl
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection technology
- Screw terminal
- Electrical connection 2, number of pins/wires
- 8
- DC operating voltage range
- 60 V
- Operating voltage range AC
- 60 V
- Current rating at 40° C
- 3 A
- Surge resistance
- 1.5 kV
- Cable tting
- Pg7
- Cable diameter
- 2.5 mm...5 mm
- Nominal conductor cross section
- 0.14 mm²...0.5 mm²
- Degree of protection
- IP65
- Note on degree of protection
- In mounted state
- Ambient temperature
- -40 °C...85 °C
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS-compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
