192159

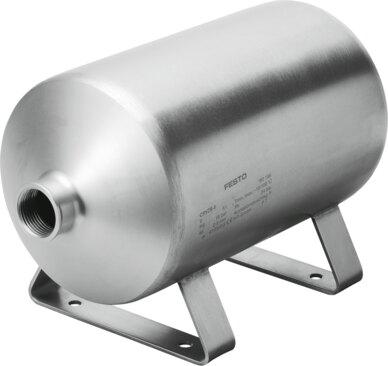

Name: Festo 192159 Air reservoir CRVZS-5
Brand: Festo

Air reservoir CRVZS-5

The Festo 192159 is an industrial component featuring a 5 l volume and a condensate drain down mounting position with through-hole installation. It operates within a pressure range of -0.095 MPa to 1.6 MPa and handles medium and ambient temperatures from -10 °C to 100 °C with compressed air or nitrogen. Certified by TÜV and compliant with AD 2000 standards, the unit provides a corrosion resistance class of 3 and features G1 pneumatic and G3/8 condensate drain connections. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 192159
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 192159.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Volume: 5 l
Mounting position: Condensate drain down
Conforms to standard: AD 2000
Operating pressure: -0.095 MPa...1.6 MPa | -0.95 bar...16 bar | -13.78 psi...232 psi
Certication: TÜV
CE marking (see declaration of conformity): as per EU pressure equipment directive
UKCA marking (see declaration of conformity): according to UK regulations for pressure equipment
Operating medium: Compressed air as per ISO 8573-1:2010 [-:-:-] | Nitrogen
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
For use in the food industry: See supplementary material information
Temperature of medium: -10 °C...100 °C
Ambient temperature: -10 °C...100 °C
Max. tightening torque for connecting thread: 130 Nm
Max. tightening torque for condensate drain: 27 Nm
Product weight: 3581 g
Type of mounting: With through-hole
Condensate drain connection: G3/8
Pneumatic connection: G1
Note on materials: RoHS compliant
Air reservoir material: high-alloy stainless steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 192159. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
